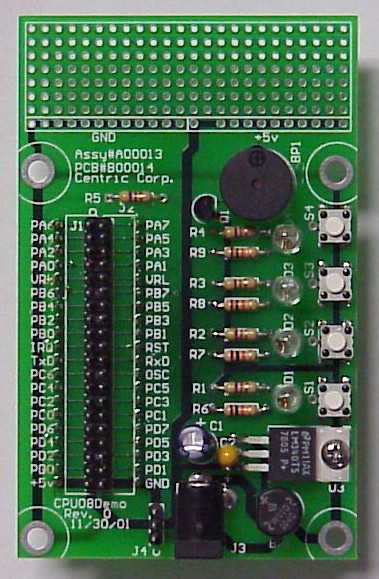

Demo08 - CPU08 CPU Module Demonstration Board


  • AC or DC Power Input using 21.mm/5mm barrel connector or 3 pin .1" SIP
  • 40 pin connector for CPU08 - Use standard 40 pin IDE Drive Ribbon Cable
  • .6" DIP pins to allow demo board to plug into solderless breadboard or wire wrap
  • 4 LEDs connected to port pins
  • 4 switches w/external pullup connected to port pins
  • Piezo beeper with driver transistor connected to port pin.
  • 8 x 24   0.1" breadboard area
  • #6 mounting holes
  • 4" x 2.5" overall size
  • Header for connection to CPU08 using Standard IDE Hard Drive cable
